The active two-way speaker series providing a professional sonic performance to all kind of users.

The most accurate sound reproduction combined with aggressive sound pressure levels and enhanced portability.

Technical Data

Speaker Type2-Way Active Speaker

Acoustical data

Usable Bandwidth [-10dB]65 - 20.000 Hz

Frequency Response [-6 dB]70 - 19.600 Hz

Max SPL120 dB

Type HFCompression Driver

HF voice coil1 "

LF8 "

LF voice coil1.5 "

Crossover Frequency2300 Hz (24 dB/oct.)

Horizontal Dispersionasymmetrical 85° up / 120°down

Vertical Dispersion85° (+25/ -60°)

Amplifier

Amp Technology

Custom Made

Amp Class

Class D - Passice cooling (convection)

Power Peak

260 W

Processor

ControllerDSP 28/56 bit- 48 kHz

LimiterPeak, RMS, Thermal

ControlsVolume, Audio Input Sensitivity, DSP Preset

Input

Main ConnectionVDE

Signal InputBalanced 1xCombo IN (MIC/LINE)

SIGNAL Out(Balanced) 1xXLR OUT (LINK)

Mechanics

HousingPolypropylene

GrilleFull Metal Grille

Handles3 (2 on side 1 on top)

Pole Mount36 mm

Width243 mm (9.57 in)

Height443mm (17.44 in)

Depth231 mm (9.09 in)

Weight6.6 kg (14.55 lbs)

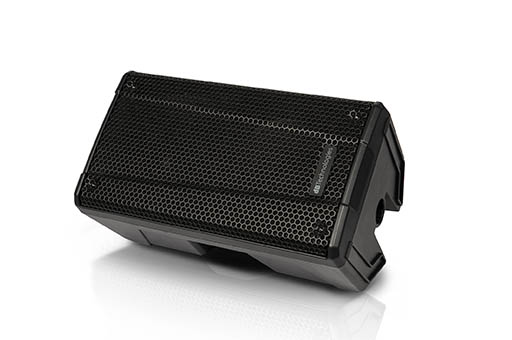

Angles UpDouble wedge angle 45°
