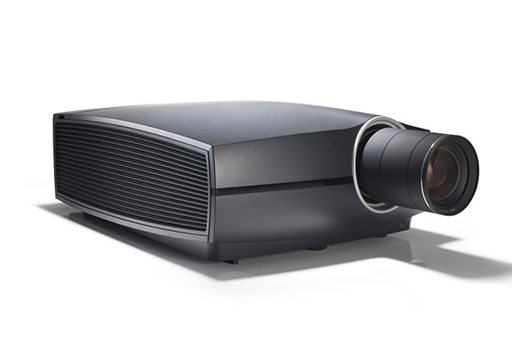

F80 - 4K 12

  • F80 - 4K 12

F80 - 4K 12

Projector typeSingle-chip DLP laser phosphor projector

Resolution3,840 x 2,400 (4K UHD) / 2,716 x 1,600 (WQXGA+ native)

Brightness7,000 center lumen*

Contrast ratio1,200:1 sequential, 10,000:1 dynamic **

Brightness uniformity> 90%

Aspect ratio16:10

Lens typeGLD/FLDX/FLD+(lens adapter needed)

Optical lens shiftVertical up to 125%, depending on lens

Horizontal up to 50%, depending on lens

Motorized zoom and focus (with lens memory on GLD and FLDX lenses)

Motorized lens shift (with position memory on all lenses)

Color correctionP7 RealColor™

CLO (constant light output)Yes

Light sourceLaser phosphor

Light source lifetime> 20000 h in normal mode, > 12000 h in silent mode, > 40000 h in long life mode, > 12000 h in high brightness mode

Sealed DLP™ coreYes

Orientation360° rotation, no restrictions

3DActive stereoscopic 3D / Passive stereo compatible

Image processingEmbedded warp & blend engine

Keystone correctionYes

Inputs

12G-SDI, 2x DP 1.2, 2x dual link DVI-D, HDBaseT, HDMI2.0 (HDCP2.2, HDR10), RJ 45 Ethernet, DMX in/out, RS232 in, 2x USB, 12V out

Input resolutions

Up to 4K UHD @ 60Hz / Up to 2,560 x 1,600 @ 120Hz

refresh rates:

24Hz to 120Hz for WQXGA+ (2716x1600) and 24Hz to 60Hz for 4K/4KUHD (4096 x 2160/ 3860 x 2400)

Software toolsProjector Toolset

ControlIR, RS232, RJ45, XLR wired

Network connection10/100 Ethernet, RJ45

Power requirements100-240V / 50-60Hz

Power consumption700 W nominal, 850 W maximum

BTU per hour2,400 BTU/h nominal, 2,900 BTU/h maximum

Standby power<0.5W

24/7 operationYes

Noise level (typical at 25°C/77°F)35 dB(A)***

Operating temperature10°C (50°F)- 40°C (104°F) (up to 1500m altitude) / 10° (50°F) - 35°C (95°F) (up to 3000m altitude)

Storage - transport temperature-20 to 60 °C

Operating humidity20 - 80% RH (non-condensed)

Storage humidity20 - 90% RH (non-condensed)

Dimensions (WxLxH)480 x 680 x 227 mm / 18.9 x 26.7 x 8.9 in

Weight25.5 kg / 56.2 lbs

Standard accessoriesPower cord, wireless remote control

CertificationsCE, FCC Class A, cNemkoUS, CCC, EAC, KSA, RCM, UkrSEPRO

WarrantyLimited 3 years parts and labor. Extendable up to 5 years
